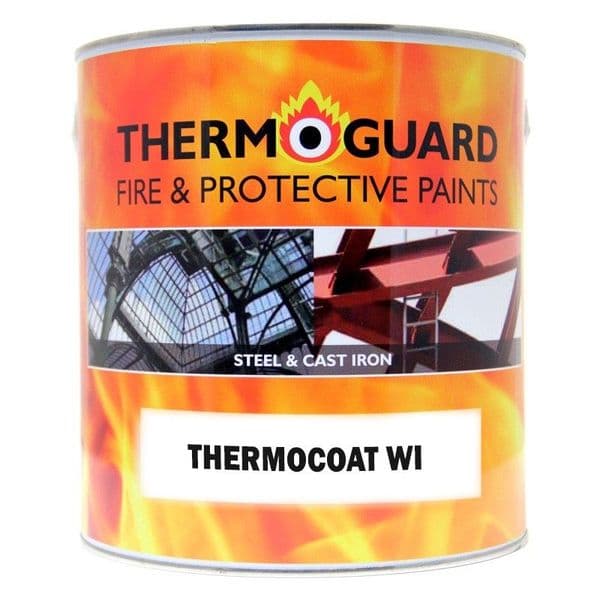

Thermoguard Thermocoat WI for steel (open sections)
Thermocoat WI & Thermocoat WO is a water-based intumescent paint system providing fire resistance to structural steel and cast iron that may be applied by brush, roller or airless spray.
A compatible decorative overcoat system ensures the system will enhance the building’s architectural and design features.
Thermoguard Thermocoat W is a low-odour, water-based coating, making it user and environmentally friendly.
The range of topcoats are either water-based or 2010 compliant and safe to use in accordance with manufacturer’s instructions.
- Water based Intumescent for structural steel
- For 30 mins protection: 1 thick coat – 2.5kg 4 linear m, 5kg 8 linear m, 20kg 32 linear m – if in any doubt please contact us.
- For 60, 90 or 120 minutes protection: contact us for further advice specific to your project
2.5kg, 5kg & 20kg packs
How intumescent coatings work

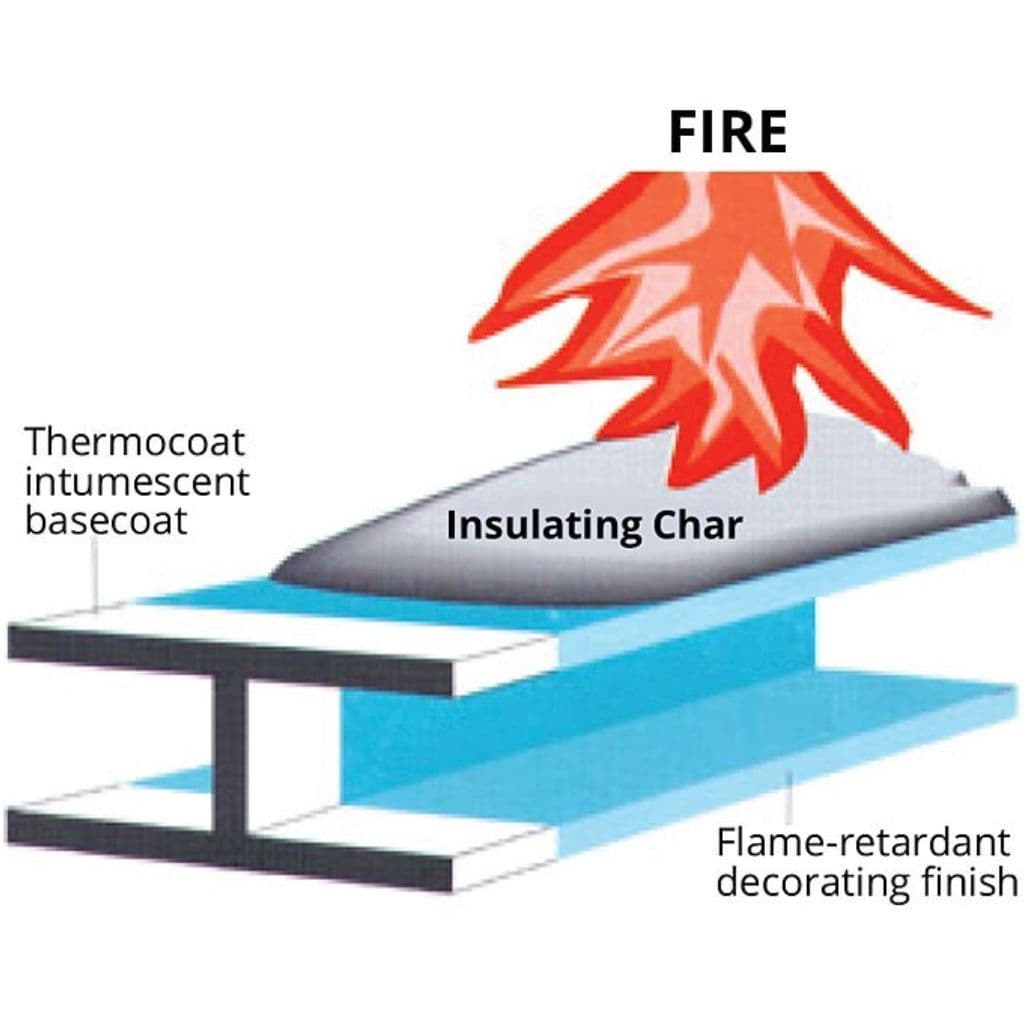

The heat of a fire triggers a catalytic reaction, causing the expansion of an insulating char layer up to 50 times the paint thickness. This layer keeps the steel below its critical temperature, thus maintaining the structural integrity of the building.
Thermocoat WI is optimised for Universal Beams, Columns and other open section steel:
See Thermocoat WO for steel hollow sections
