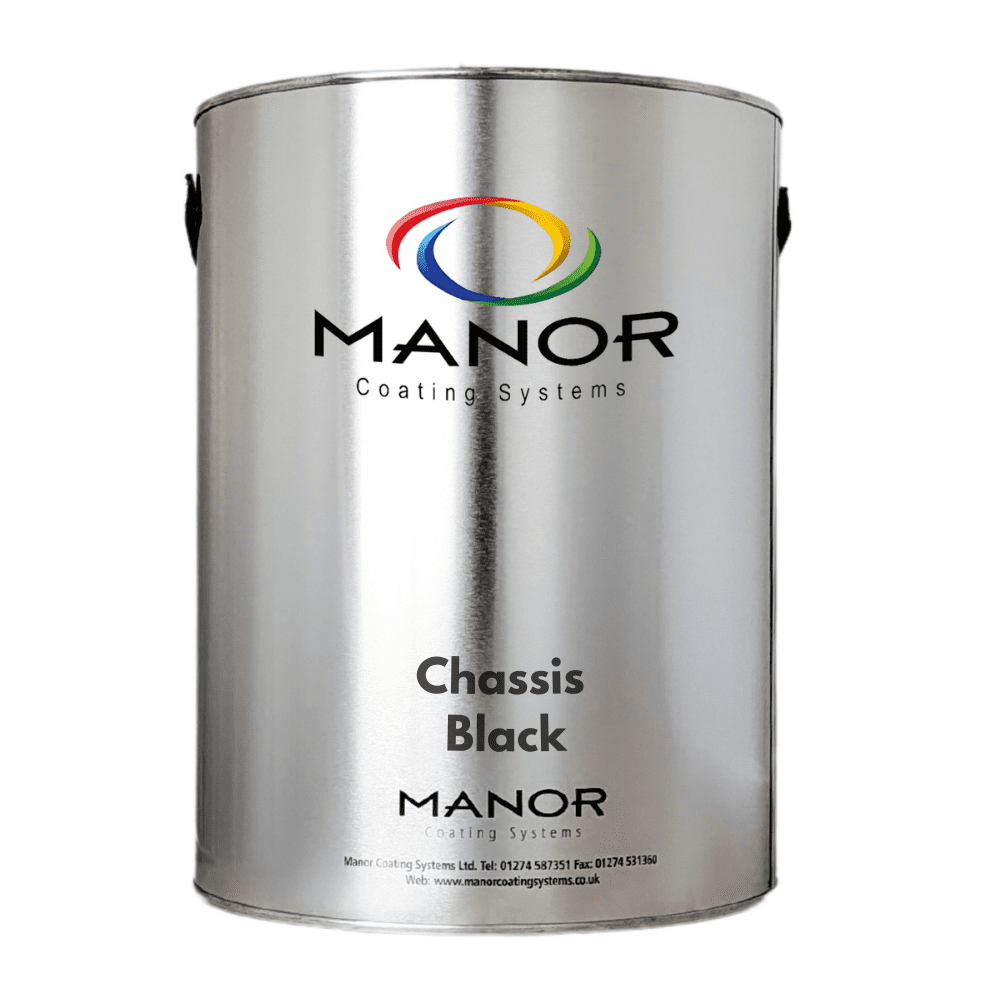

Manor Chassis Black Gloss

A single pack, high gloss chassis coating typically used on commercial vehicles and trailers. With its long “wet-edge”, this is suitable for many brush applications for example, garden furniture, machinery, gates, railings etc. over a suitable rust inhibiting primer

Features:
- positive overnight dry and tack free in 3 to 4 hours.
- high gloss, excellent opacity.
- jet black finish.
- economic.
- good resistance once cured to fuel and oil splash for single pack product

SUITABLE SUBSTRATES AND PREPARATION.
Normally applied over UPF or UPF CT primer, see data sheets for these products for primer details. Other primers are prone to de-lamination of the topcoat from the primer when chassis’ are pressure washed. Surfaces must be dry, sound and free from dirt, dust, mill scale, rust and grease.
Previously painted surfaces; remove rust, remove loose/flaky paint, patch prime, lightly abrade whole surface, remove dust, dirt, oil and grease prior to application.

AVAILABILITY
A full gloss black finish in 1 litre, 2.5 litre and 5 litre tins.

PRODUCT INFORMATION.
Composition Based on a medium oil urethane modified alkyd resin and high-quality carbon black pigment.
Volume Solids 48%.
Weight Solids 55%.
VOC content 415 g/litre.
Supply Viscosity 6 poise at 20oC.
Typical film thickness 80 microns wet and 40 microns dry.
Theoretical coverage 12.5 sq metres/litre at 80 microns wet film thickness.
Dry heat resistance 80oC.
Flash Point In the range 32-55 C flammable

APPLICATION DETAILS.
PREFERABLY BRING PAINT TO 15-25C AND STIR WELL BEFORE USE.
Airless spray: cold the product is supplied ready for use. Typical tip size 9-11 thou or 0.23-0.28 mm. Typical fluid pressure 140 kg/sq metre or 2000 psi.
Airless spray: heated as cold but maximum temperature 70oC.
Conventional spray; Add up to 15% thinners, can also be hot sprayed at a maximum temperature of 70oC.
Brush Roller: Ready for use by brush.
Thinner: Manor Low Odour White Spirit.
Film thickness per coat.
                                            Dry                               Wet
Minimum                         30 microns                  60 microns
Maximum                        50 microns                  100 microns

DRYING AND RECOATING.
Approximate drying times at 40 microns d.f.t.

                                                                                                   Overcoating times
Substrate temperature        Touch Dry                                Minimum              Maximum
10C                                              6 hours                                     8 hours                3 days (see note)
20C                                             3 hours                                     4 hours                3 days (see note)

Note After 2-3 days air drying between coats it is important to lightly abrade the coating to remove surface gloss and improve intercoat adhesion. Allow 16 hours for the flatted paint to heal up prior to recoating to prevent wrinkling.

Environmental conditions
The air temperature should be at least 5 C with a surface temperature 3 C above dew point and the relative humidity below 90% thus ensuring that the surface is dry and that condensation will not occur during application or drying. The drying times will be significantly extended in cold, damp conditions.

Overcoating /repainting.
A further coat of the product may be applied if required.

SHELF-LIFE Store in cool, dry conditions, typically 5-25C. After a period of storage, the product should be thoroughly stirred. Usable life is 2 years from date of manufacture in unopened containers.
